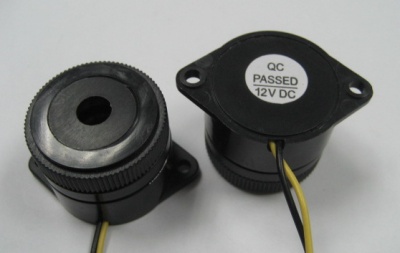

Home  >> Piezo Buzzer > Self Drive > AZ-3032S-WP



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3-15
3 Rated Current mA(Max) 9 At 12 VDC
4 Sound Output At 30cm dBA(Min) 90 At 12VDC
5 Resonant Frequency Hz 3200±500
6 Operating Temp. ℃ -20 ~ +60
7 Storage Temp. ℃ -30 ~ +70
8 Tone Nature   Slow Pulse
9 Weight g 15















Data Sheet
