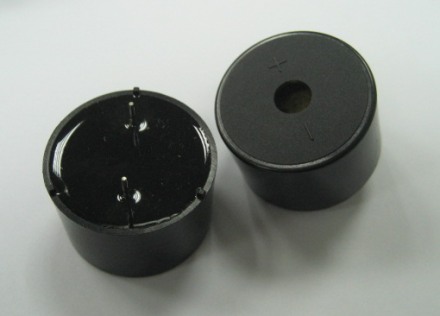

Home  >> Piezo Buzzer > Self Drive > AZ-3035S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3 ~ 28
3 Rated Current (Max) mA 15 At 12 VDC
4 Min Sound Output dBA 90 At 12 VDC / 30cm
5 Resonant Frequency Hz 3500±500
6 Tone Nature Fast pulse
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 4















Data Sheet
