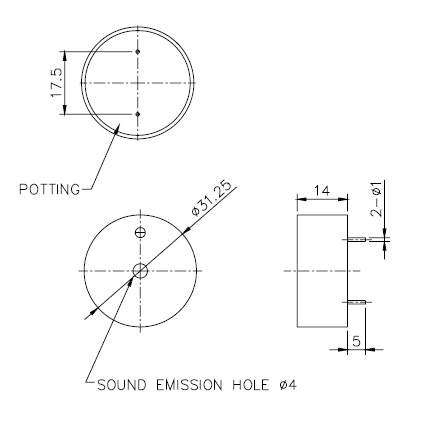

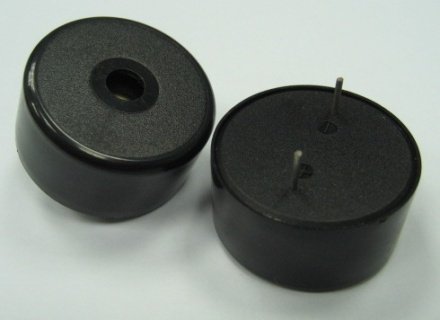

Home  >> Piezo Buzzer > Self Drive > AZ-3135S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 5~15
3 Rated Current mA(Max) 15 At 12 VDC
4 Sound Output At 10 cm dBA(Min) 100 At 12 VDC
5 Resonant Frequency Hz 3500±500
6 Tone Nature   Single
7 Operating Temp. ℃ -20~ +70
8 Storage Temp. ℃ -30 ~ +80
9 Weight g 8















Data Sheet
