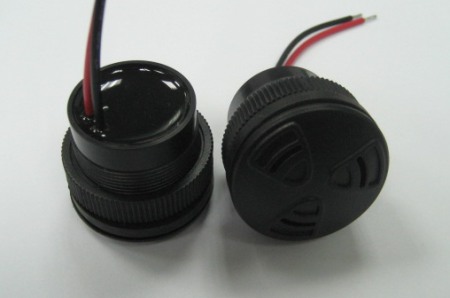

Home  >> Piezo Buzzer > Self Drive > AZ-3329S-W



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 10
2 Operating Voltage VDC 3 ~ 25
3 Rated Current mA(Max) 25 At 10VDC
4 Sound Output dBA(Min) 100 At 10VDC / 10cm
5 Resonant Frequency Hz 2900±500
6 Tone Nature SINGLE
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 20

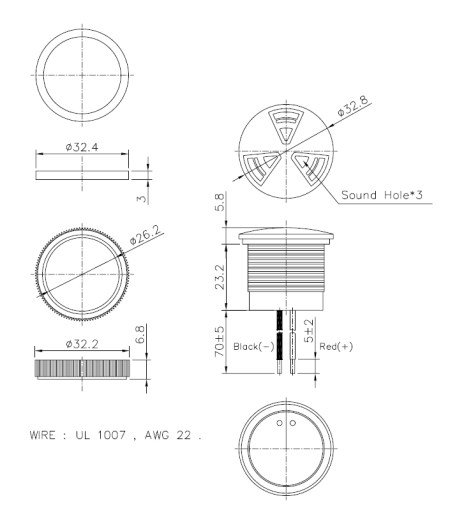

Data Sheet
