Home  >> Piezo Buzzer > Self Drive > AZ-4228E-B



External Drive Self Drive SMD Element

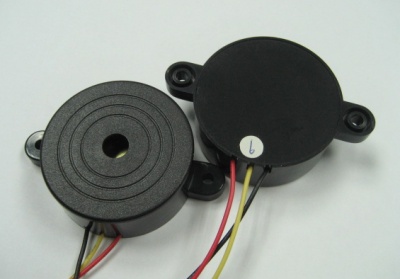

Piezo Transducer

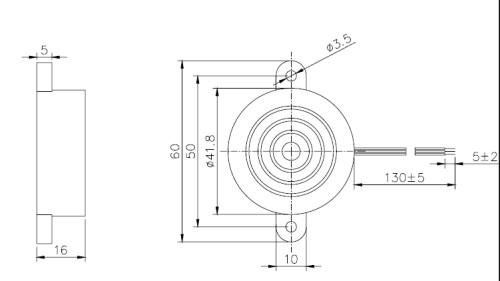

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3-24
3 Rated Current mA(Max) 14 At 12VDC
4 Sound Output At 10cm dBA(Min) 85 At 12VDC
5 Resonant Frequency Hz 2800±500
6 Operating Temp. ℃ -20 ~ +60
7 Storage Temp. ℃ -30 ~ +70
8 Tone Nature   Single
9 Weight g 10















Data Sheet
