A&B Components

Buzzer manufacturer   A & B Components Co. Ltd.

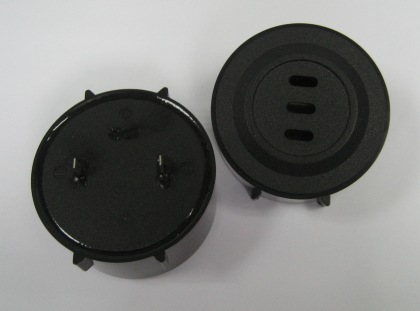

Home  >> Piezo Buzzer > Self Drive > AZ-5029S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3-20
3 Rated Current mA(Max) 20 At 12 VDC
4 Sound Output At 30cm dBA(Min) 90 At 12VDC
5 Resonant Frequency Hz 2900±500
6 Operating Temp. ℃ -20 ~ +70
7 Storage Temp. ℃ -30 ~ +80
8 Tone Nature   Slow pulse
9 Weight g 40















Data Sheet
